4 Head DTF Printer with Powder Shaker and Dryer

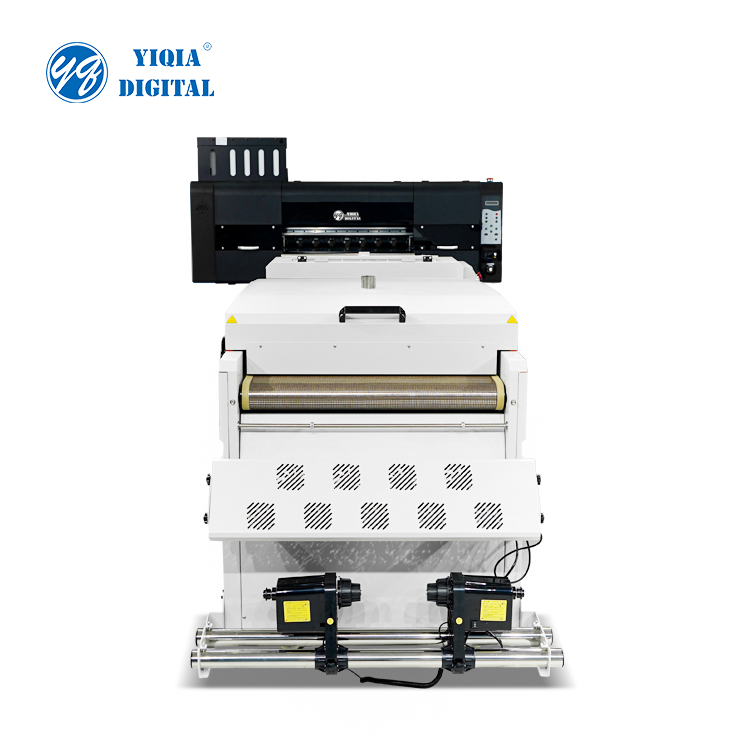

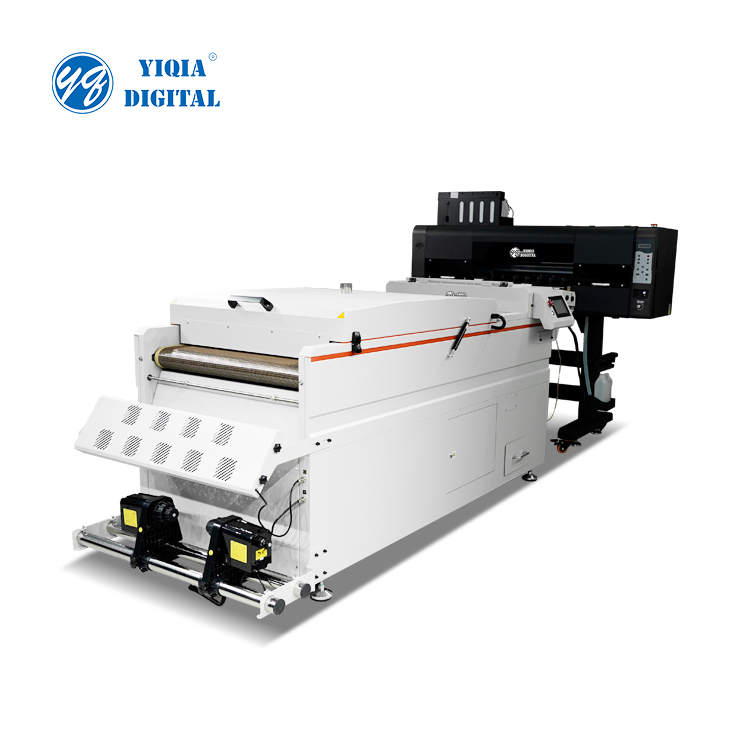

T604+H6501 24” 4-Head DTF Printer with Powder Shaker Machine
High-Speed, High-Precision DTF Printing System for Growing Businesses
If you’re looking for a powerful and reliable DTF Printer solution that delivers both speed and quality, the T604 + H6501 is your best match. This 24-inch printing system uses 4 Epson i3200-A1 print heads for sharp, vibrant results. Paired with the H6501 powder shaker, it forms a complete solution for roll-to-roll film printing and hot melt powder curing.
product specification
| YIQIA DIGITAL DTF Printer | |
|---|---|
| Model | T604 |
| Print Head | 4pcs Epson i3200-A1 |
| Print Color | CMYK+CMYK+W+W |
| Fastest Print Speed | 4PASS:38㎡/h 6PASS:26㎡/h 8PASS:20㎡/h |
| Standard Print Speed | 4PASS:27㎡/h 6PASS:18㎡/h 8PASS:13㎡/h |
| Printing Width | 24” |
| Media Type | DTF Pet Film |
| RIP Software | Standard with RIIN or Printfactory; For Option: Maintop, PhotoPrint, CADlink |
| Temperature/Humidity | 20C-30℃ / 45%-65% |
| Power/Voltage/Current | 1.6KW；220V/110V，7.2A/14.5A，50HZ/60HZ |
| Operating System | Windows 11(64bit) / Windows 10(64bit) |
| Machine Size | L1670*W815*H1600mm |
| Packing Size | L2025*W840*H740mm |
| Net Weight | 200Kg |
| Gross Weight | 235Kg |
| Shake Powder Machine | |
|---|---|
| Model | H6501 |
| Medium Width | 24” |
| Media Type | Nylon, chemical fiber, cotton, leather, diving suit,PVC,EVA etc. |
| Powder Control | Shake powder control, dusting control, direction and quantity control |
| Heating and Drying Function | Efficient and powerful drying and curing |
| Material Transfer Mode | Net belt conveyor, guide tape type |
| Reel Function | Automatic induction retraction |
| Power Supply/Voltage | 220V/110V ; 40A/80A ; 50HZ/60HZ |
| Power | 6.8KW |
| Energy Consumption | 3KW-6.8KW |
| Machine Size | L2305*W1092*H1102mm |
| Packing Size | L2400*W1120*H1140mm |
| Net Weight | 310Kg |
| Gross Weight | 360Kg |
Application
DTF printing combines the best of digital inkjet printing and transfer printing.
In order to meet the individual needs of the market, YIQIA DIGITAL has established a production line for DTF films and a supply chain for DTF inks and hot melt powders to provide customers with a one-stop solution for DTF printing.
Fashion
Mousepad
Hoodie
Bag
T-shirt
Mask
